ISOKING TM China EPS Roof Insulation Sandwich Panels
Home » Products » Sandwich Panels » EPS Panel » ISOKING TM China EPS Roof Insulation Sandwich Panels

ISOKING TM China EPS Roof Insulation Sandwich Panels

Polystyrene sandwich panel (EPS Sandwich Panel) is a new type of construction panel.

Easy to install.

Low thermal conductivity.

ISO14001:2004 and CE certificate.

Description of ISOKING TM China EPS Roof Insulation Sandwich Panels:

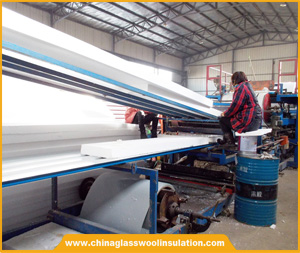

Polystyrene sandwich panel (EPS Sandwich Panel) production process adopts the colored steel sheet as surface board, and the core material is closed cell polystyrene foam. It is a kind of high strength composited building material, and it was formed in the automated continuous molding machine, by combining the pressed colored steel with the high strength adhesives. EPS sandwich panel has the characteristics of complete insulation and durability, and beautiful appearance, etc.

ISOKING TM China EPS Roof Insulation Sandwich Panels Details:

Product Name

Polystyrene sandwich panel (EPS Sandwich Panel)

Steel Thickness

0.25~0.6mm

Panel thickness

50/75/100/125/150/250 mm

Effective width

950/980mm ---for roof

950/1150mm---for wall or ceiling

Length

According to customer's request, less than 11.8m

Materials

Inner is EPS, two sides is Color steel sheet

Structure

Three layers:

Upper layer is steel sheet,

The inner layer is polystyrene sandwich,

The bottom layer is also steel sheet.

EPS Density

8- 40kg/m³

Color

Blue, white grey or refer to RAL

Parts

Steel line for easy connect one by one

Film covering in order to protect the steel of panels

Lifetime

15~20 years

Character

Light in weight, heat insulation, fireproof and waterproof, environmental.

Application

Various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums, etc.

Physical and Mechanical Properties of ISOKING TM China EPS Roof Insulation Sandwich Panels:

Item

Unit

Index of Properties

Apparent Density≤

Kg/m3

15.0

20.0

30.0

Compressive Strength(Compressive stress under 10% deformation) ≥

KPa

60

100

150

Thermal Coefficient≤

w/(m.k)

0.041

0.041

0.041

Water Vapor Permeability Coefficient≤

Ng/Pa.m.s

9.5

4.5

4.5

Water-intake Rate≤

%

6

4

2

Oxygen Index≥

%

30

30

30

China EPS Roof Insulation Sandwich Panels
