ISOKING TM Glass Wool Insulation Lamella for Sandwich Panel
Home » Products » Glass Wool Insulation » ISOKING TM Glass Wool Insulation Lamella for Sandwich Panel

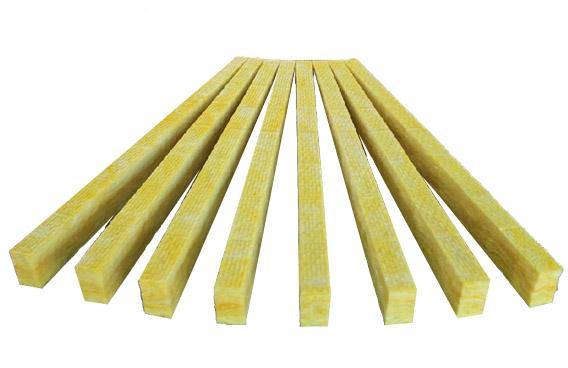

ISOKING TM Glass Wool Insulation Lamella

Width: 935, 940, 950mm.

Length: 1.2m.

Height: 50, 75, 100mm

Density: 30-64kg/m3

Overview of ISOKING TM Glass Wool Insulation Lamella:

ISOKING TM Glass Wool Insulation lamella is made from natural ores such as quartz sand, dolomite, feldspar, limestone and so on, which are melted into glass fluid by adding in accessories such as calcined soda and borax and then drawn, bown or thrown into very thin fiber by external force under fusing state. These fibers are bonded together using a thermosetting resin to form the final product which is cut into suitable sizes for easy handling and installation.

ISOKING TM Glass Wool Insulation lamella production lines range from 5 to 700 tons/day capacity (100,000 to 1,500,000 tons/year), and are fully automated thanks to PLC and Scada systems.

All ISOKING TM lines comply with the latest international environmental regulations.

Distinctive advantages of ISOKING TM Glass Wool Insulation Lamella:

Environment friendly.

Excellent thermal and acoustic insulation.

Easy to cut, handle and install.

Stable physical and chemical properties.

Antisepsis, ageing resistance, and anticorrosion.

Grade A1 fireproof; incombustible.

Applications of ISOKING TM Glass Wool Insulation Lamella:

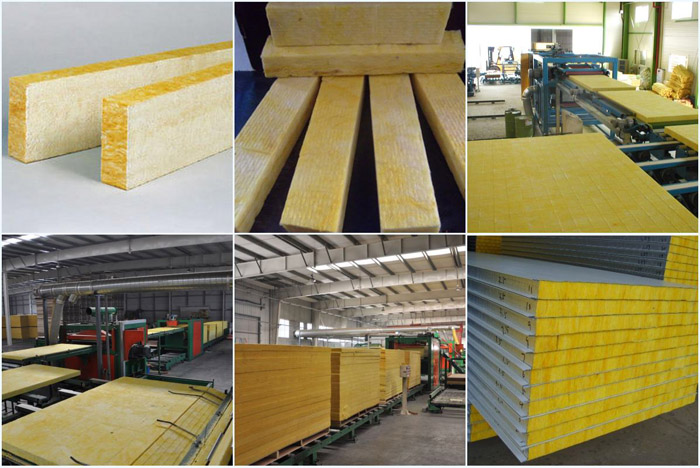

Glass Wool lamella is mainly for the production of glass wool sandwich panel. It is a superior core material of the sandwich panel series.

Product Specifications of ISOKING TM Glass Wool Insulation Lamella:

Property

Standard

Performance

Temperature range

ASTM C411

Up to 233 oC (450 oF)

Moisture absorption

ASTM C1104

< 1.0% at 49 oC, 95% RH

Corrosivity

ASTM C665

Does not accelerate

Mold resistance

ASTM C665

No growth

Surface burning Characteristics Fire Test

ASTM E84

BS 476 Part 6,7
AS 1530-3

Flame spread < 25

Smoke developed < 50

Class 0

Ignitability Inde 0

Spread of Flame Index 0

Heat Evolved Index 0

Smoke Developed Index 1
